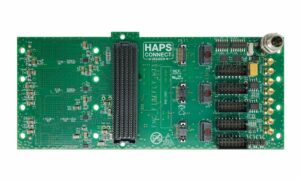

FMC_FIREFLY_HT3
Categories: HAPS Connect/GPIO/EH1701003011
This daughter board provides an interface between FMC connector and 3 FireFly connectors that support up to 10 high-speed links.
The FMC_FIREFLY_HT3 daughter board features three FireFly transceiver connectors capable of supporting up to ten high-speed serial links across three FireFly cables. The FMC connector provides a standard mezzanine card form factor, connectors, and a modular interface to the HAPS system through four HT3 connectors.
- 1 HAPS 10-pin 3.3V-level GPIO Headers
- 4 High-Speed 10-pin VCCO-level GPIO Headers
- 1 HPC FMC Connector
- 4 HT3 Connectors
- 3 FIREFLY Connectors
- 4 pairs of Differential MMCX Clock Connectors (2 pairs for HT3 output)
