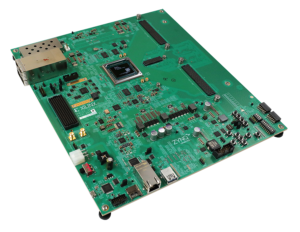

EK-U1-ZCU208-G
The Zynq® UltraScale+™ RFSoC ZCU208 Evaluation Kit is the ideal RF test platform for both out-of-box evaluation and cutting-edge application development. This kit features a Zynq UltraScale+ RFSoC ZU48DR, which integrates eight 14-bit 5GSPS ADCs, eight 14-bit 10GSPS DACs, and eight soft-decision forward error correction (SD-FEC) cores designed to jumpstart RF class applications. The combination of Arm® Cortex®-A53 and Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwidth in a Zynq UltraScale+ device, makes the ZCU208 evaluation kit the most comprehensive RF Analog-to-Digital signal chain prototyping platform.
Target Applications:
- Remote PHY for Cable Access
- Early Warning Phased Array Radar / Digital Array Radar
- Satellite Communications
- 5G Wireless
- Test & Measurement
- All High Performance RF Applications
Industry’s only single-chip adaptable radio platform
- Zynq UltraScale+ RFSoC XCZU48DR-2FSVG1517E silicon featured on the ZCU208 Evaluation board
- Integrated 8x 5GSPS ADC, 8x 10GSPS DAC, 8x SD-FEC design example
- Lidless package for improved thermal dissipation
Comes equipped with all board-level features needed for design development
- DDR4 Component – 4GB, 64-bit, 2666MT/s, attached to programmable logic (PL)
- DDR4 SODIMM – 4GB 64-bit, 2400MT/s, attached to the processing subsystem (PS)
- FPGA Mezzanine Card (FMC+) interface for I/O expansion, including 12x 33Gb/s GTY transceivers and 34 user-defined differential I/O signals
- Quad zSFP/zSFP+ cage assembly
- 8 user-I/O, single-color LEDs
Includes reference design mezzanine cards to reduce development time
- CLK104 RF clock add-on card, showcasing internal reference clocking and external sampling clocking
- XM650 N79 band loopback add-on card allows simple out-of-box loopback and example reference layout for baluns
- XM655 breakout add-on card allows in-depth lab-based measurements including multi-tile synchronization (MTS)
| Board Specifications | Value |
|---|---|
| Height | 12.225 inch (31.05cm) |
| Width | 10.675 inch (27.11cm) |
| Thickness (+/-5%) | 0.119 inch (0.302cm) |
| Operating Environmental Temperature | 0◦C to +45◦C |
| Storage Environmental Temperature | –25◦C to +60◦C |
| RF Data Converter | |
| # of 14-bit RF-ADCs | 8 |
| Max Rate (GSPS) | 5 |
| # of 14-bit RF-DACs | 8 |
| Max Rate (GSPS) | 10 |
| SD-FEC | 8 |
| Memory | |
| PS DDR4 | 4GB 64-bit SODIMM |
| PL DDR4 | 8GB 64-bit Component |
| Micro SD Card | 16GB |
| M.2 SATA Connector | Yes |
| QSPI | 2 |
| Communications & Networking | |
| USB (UART/JTAG) | 1 |
| RJ-45 | 1 |
| SFP28 | 4 |
| USB 3.0 | 1 |
| Display | |
| DIP Switches | Yes |
| LEDs | Yes |
| Push Buttons | Yes |
| Expansion Connectors | |
| FMC+ | 1 |
| RFMC 2.0 | 2 |
| Add-on Cards | |
| XM650 | 1 |
| XM655 | 1 |
| CLK104 | 1 |
| Control & I/O | |
| I2C | Yes |
| PMBUS | Yes |
| JTAG PC4 Header | Yes |
| Boot Options | |
| SD Boot | Yes |
| QSPI Boot | Yes |
| JTAG Boot | Yes |
| Power | |
| 12V Wall Adapter | Yes |
| ATX Power Compatible | Yes |
