EK-VMK180-G-ED

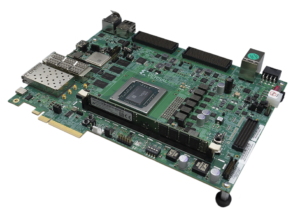

The Versal™ Prime series VMK180 evaluation kit is your fastest path to application bring-up using the world’s first adaptive compute acceleration platform (ACAP).
The VMK180 evaluation board features the Versal Prime series VM1802 device, which combines a software programmable silicon infrastructure with world-class compute engines and a breadth of connectivity options to accelerate diverse workloads in a wide range of markets.
The VMK180 kit is ideal for a broad range of applications requiring performance and flexibility such as:
- Data center network & storage acceleration
- SmartNIC
- 5G xHaul
- Nx100G Ethernet & OTN networking
- Communications test equipment
Evaluate Versal Prime Series Capabilities
- Equipped with Versal ACAP VM1802 production silicon
- Jump start HW/SW differentiation with pre-built system infrastructure, enabled by programmable network on chip and integrated shell
Breadth of Connectivity Options for Rapid Application Development
- PCIe® Gen4 interface for high compute performance markets
- HDMI for video processing applications
- SFP28 and QSFP28 optical interfaces and RJ-45 Ethernet port for networking
- DDR4 and LPDDR4 memory interfaces
- FMC expansion connectors supporting a variety of optional plug-in cards including camera sensors and displays
Co-Optimized Tools and Debug Method
- Vivado® Design Suite, Vitis™ unified software platform
| Board Specifications | Value |
|---|---|
| Length | 7.477 in |
| Height | 9.5 in |
| PCB Thickness (+/-8%) | 0.066 in |
| Operating Environmental Temperature | 0°C to +45°C |
| Storage Environmental Temperature | –25°C to +60°C |
| Configuration | |
| JTAG | Yes |
| QSPI | Yes |
| Micro SD | 2 |
| Memory | |
| DDR4 DIMM | 8GB |
| LPDDR4 Component | 8GB (4x16Gb) |
| Micro SD Socket | 16GB |
| Control I/O | |
| User Pushbuttons | 6 |
| DIP Switches | 4 |
| User LEDs | 4 |
| SYSMON | Yes |
| System Controller | Yes |
| PMBUS | Yes |
| Expansion Connectors | |
| VITA 57.4 FMC+ (12 GTYs per connector) | 2 |
| PCIe® Gen4 x8 | 1 |
| Communication & Networking | |
| UART to USB Bridge | 1 |
| CAN-FD Header | 1 |
| RJ-45 Tri-Speed Ethernet Connectors | 3 |
| SFP28 | 2 |
| QSFP28 | 1 |
| Display | |
| HDMI Video Output | 1 |
| HDMI Video Input | 1 |
| Clocking | |
| Programmable DDR4 DIMM | 1 |
| Programmable LPDDR4 Component | 2 |
| PCIe Reference Clock | 1 |
| HDMI | 1 |
| Programmable zSFP | 1 |
| Programmable HSDP | 1 |
| Programmable 1588 eCPRI | 4 |
| Programmable System Controller | 1 |
| Power | |
| 180V (12V) Power Supply | Yes |
| Power on Reset | Yes |
