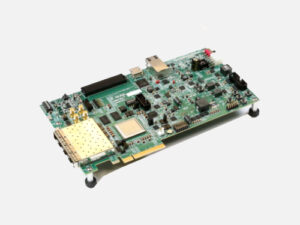

The Kintex® UltraScale+™ FPGA KCU116 Evaluation Kit is ideal for evaluating key Kintex UltraScale+ features most notably 28Gbps transceiver performance. The Kintex UltraScale+ family provides the best price/performance/watt balance in a FinFET node, delivering the most cost-effective solution for high-end applications.

  • 4x zSFP+ cages to support 28Gbps GTY evaluation
  • DDR4 up to 32-bits
  • General purpose prototyping elements including FMC, HDMI, PMODs
  • PCIe Gen3 x8 compliant
  • PCIe Gen4 capable with 3rd party IP or custom IP
Configuration
  • Onboard JTAG configuration circuitry to enable configuration over USB
  • Dual Quad-SPI flash memory provides 2×1 Gb of non-volatile storage
    		•
    Communication & Networking
  • 4x zSFP+ Cages
  • 4x SMAs
  • UART To USB Bridge
  • RJ45 Ethernet connector supporting SGMII Ethernet communications at 10, 100, or 1000 Mb/s
  • PCIe Gen3x8 compliant and Gen4 capable
    • Expansion Connectors
  • FMC-HPC (Partial Population) connector (4 GTY Transceiver, 46 single-ended or 23 differential (23 LA pairs: LA[00:22]) user defined signals)
  • 2x PMOD headers ( 1 male and 1 female)
    		•
    Control & I/O
  • 5X Directional Push Buttons
  • 4X DIP Switches
  • PMBUS & System Controller
    		•
    Memory
  • 1 GB 32-bit DDR4 component memory (two [256 Mb x 16] devices) at 1333MHz / 2666Mbpsps
  • 64MB (512Mb) Quad SPI Flash
  • Micro-SD Card Slot
    		•
    Clocking
  • Dual Si570 Clock chips (User & GT)
  • SI5328 Jitter attenuating precision clock
  • 2x SMA MGT input clocks
    		•
    Display
  • HDMI video out
  • 8x GPIO user LEDs
    		•
    Power
  • 12V wall adapter or ATX
    		•
