EK-U1-ZCU106-G

EK-U1-ZCU106-G

Categories: Zynq

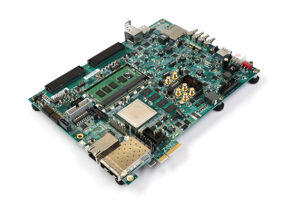

The ZCU106 Evaluation Kit enables designers to jumpstart designs for video conferencing, surveillance, Advanced Driver Assisted Systems (ADAS) and streaming and encoding applications. This kit features a Zynq® UltraScale+™ MPSoC EV device and supports all major peripherals and interfaces, enabling development for a wide range of applications. The included ZU7EV device is equipped with a quad-core Arm® Cortex®-A53 applications processor, dual-core Cortex-R5 real-time processor, Mali™-400 MP2 graphics processing unit, 4KP60 capable H.264/H.265 video codec, and 16nm FinFET+ programmable logic.
  • Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
  • Integrated video codec unit supports H.264/H.265
  • HDMI video input and output
  • PCIe® Endpoint Gen3x4, USB3, DisplayPort & SATA
  • DDR4 SODIMM – 72-bit attached to processor subsystem
  • DDR4 Component – 64-bit attached to programmable logic
  • 2x SFP+ cages
  • 2x FPGA mezzanine card (FMC) interfaces for I/O expansion
Memory
  • PS DDR4 72-bit SODIMM
  • PL DDR4 component
  • Quad-SPI flash
  • SD card slot
    		•
    Communication & Networking
  • SDI (x1 GTH)
  • AES3 audio connector
  • SFP+ cage (2x 2GTH)
  • SMA (x1 GTH)
  • UART to USB bridge
  • RJ-45 Ethernet connector
  • SATA (1x GTR)
  • PCIe Gen3 Endpoint (x4 GTH)
    		•
    Control & I/O
  • 6x directional pushbuttons
  • DIP switches
  • PMBUS & System Controller MSP430 for power, clocks, and I2C bus switching
  • USB2/3
    		•
    Power
  • 12V wall adaptor or ATX
    		•
    Clocking
  • Programmable clocks
  • System clocks, user clocks, jitter attenuated clocks
    		•
    Expansion Connectors
  • 2x FMC-HPC connectors
  • 2 Pmod headers
    		•
    Display
  • HDMI video input and output (x3 GTH)
  • DisplayPort (2x GTR)
    		•
    Configuration
  • Onboard JTAG circuitry to enable configuration over USB
  • Dual quad-SPI flash memory
  • Boot from SD card
    		•
