EGO-ZU19EG
分類:XUP/EGO

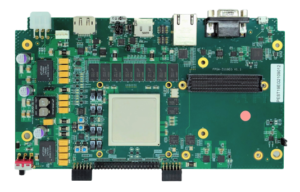

ZU19EG 是一款緊湊型 SoC 原型開發板。
採用 Zynq® UltraScale+™ MPSoC 器件,可提供 64 位處理器可擴展性,同時將實時控制與軟和硬引擎相結合,用於 SoC 原型設計解決方案、IP 驗證、圖形、影片、封包處理和早期的軟體開發。
主要優勢在於,它搭載了 Zynq® UltraScale+™ MPSoC 系列中最大的 FPGA,擁有超過一百萬個邏輯單元。
它包括一個運行頻率高達 1.5GHz 的四核 ARM® Cortex-A53 平台。
結合雙核 Cortex-R5 即時處理器、Mali-400 MP2 圖形處理單元和 16 納米 FinFET+ 可編程邏輯,EG 設備具有在下一代有線和 5G 無線基礎設施、雲端計算方面表現出色所需的專用處理元件,以及航空航天和國防應用。
- 系統主晶片:Xilinx Zynq UltraScale+ XCZU19EG FFVB1517
- Memory:8GB DDR4 ( PL x 4G / PS x 4G )
- Interfaces: Micro USB x 1, Micro USB Type B x 1, ETHERNET x 1
- User I/O:
4 Push Buttons
4 Switches
4 LEDs - 通用擴展I/O:
HPC FMC Vita57.1 x 1
Pmod x 2 ( PS/PL各一 )
40-Pin Raspberry Pi connector
Can-Bus x 1
MicroSD Card Slot x 1 - 多媒體接口:DisplayPort x 1
- 電源:12V 5A
