EK-U1-VCU128-G

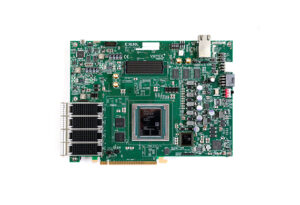

The VCU128 board incorporates the all new Xilinx Virtex® UltraScale+™ VU37P HBM FPGA that integrates 8GB of HBM DRAM adjacent to FPGA die to enable massive memory bandwidth and much smaller PCB footprint. Virtex UltraScale+ HBM FPGAs alleviate bandwidth bottlenecks and power consumption associated with using parallel memories, like DDR4, in compute, database, and network acceleration applications.
The VCU128 evaluation kit is optimized for quickly prototyping applications using Virtex UltraScale+ HBM FPGAs.
Massive Memory Bandwidth for compute intensive applications
- 8GB of integrated HBM
- Up to 460GB/s of HBM bandwidth
- Multiple external memory interfaces (RLDRAM3, QDR-IV, DDR4)
Flexible connectivity for broad applications
- Quad 32Gb/s QSFP28 interfaces
- PCIe® Gen3 x16 & Gen4 x8
- VITA 57.4 FMC+ interface
- 10/100/1000Mb/s Ethernet
| Board Specifications | Value |
|---|---|
| Length | 9.5 inch (24.13 cm) |
| Height | 7.53 inch (19.14 cm) |
| Thickness (+/-5%) | 0.061 inch (0. 1549 cm) |
| Operating Environmental Temperature | 0◦C to +45◦C |
| Storage Environmental Temperature | -25◦C to +60◦C |
| Memory | |
| DDR4 Component | 4.5 GB – 5 x (512 Mb x 16) |
| QDR4 Component | 144 Mb – 1 x (4 Mb x 36) |
| RLD3 Component | 288 MB – 2 x (1.125 Gb x 36) |
| Communications & Networking | |
| QSFP28 Optical | 4 |
| Ethernet Port | 2 |
| PCIe® Gen3 x16 or Gen4 x8 | 1 |
| USB UART | Yes |
| Display | |
| DIP Switches | Yes |
| LEDs | Yes |
| Push Buttons | Yes |
| Expansion Connectors | |
| FMC+-HSPC Connector | 1 |
| Control & I/O | |
| IIC | Yes |
| PMBUS | Yes |
| Power | |
| 12V Wall Adapter | Yes |
| ATX Power Compatible | Yes |
